Hardware installation and packaging specifications:

Model: ZF1B

Brand Name: OEM

Motherboard Compatibility: ATX/M-ATX

Expansion slots: 7

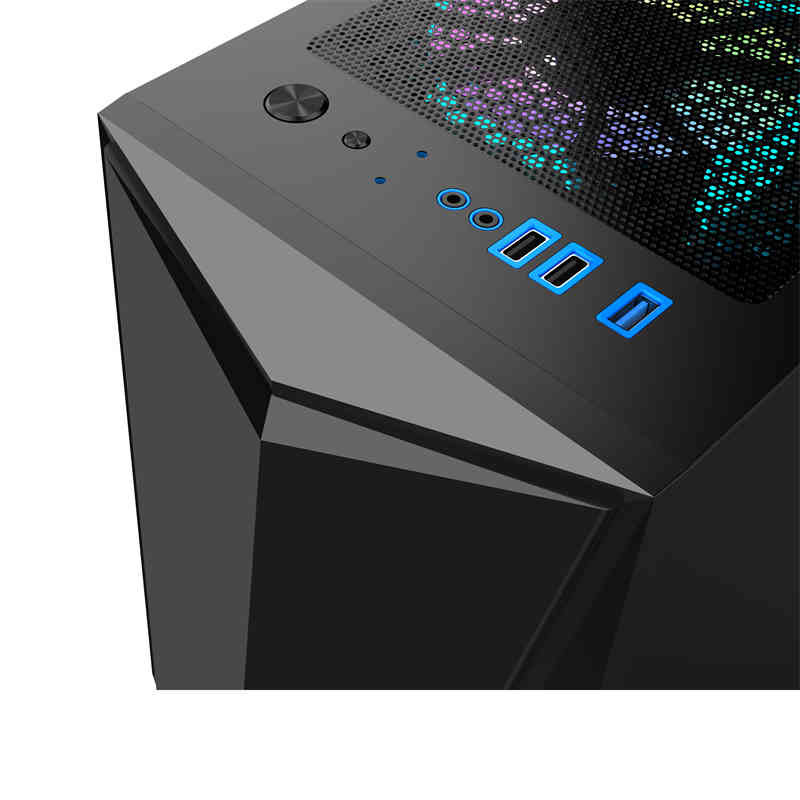

Panel interface: HD Audio; USB3.0*1; USB2.0*2

Hard disk position: HDD*1; SSD*1

Radiator height limit: 165MM

Graphics card length limit: 305MM

Fan position: front 12CM*3;

top 12CM*2;

rear 12CM*1;

12CM*2 on the top of the power compartment

Product material: SPCC blackened steel plate + tempered glass

Plate thickness: 0.5mm

Power support: bottom ATX power supply

Chassis size: L380*W190*H447MM (including foot pads)

Hardware size: L335*W190*H435MM

Packing size: L500*W245*H445MM

Loading standard: 40HQ=1240pcs
