Hardware installation and packaging specifications:

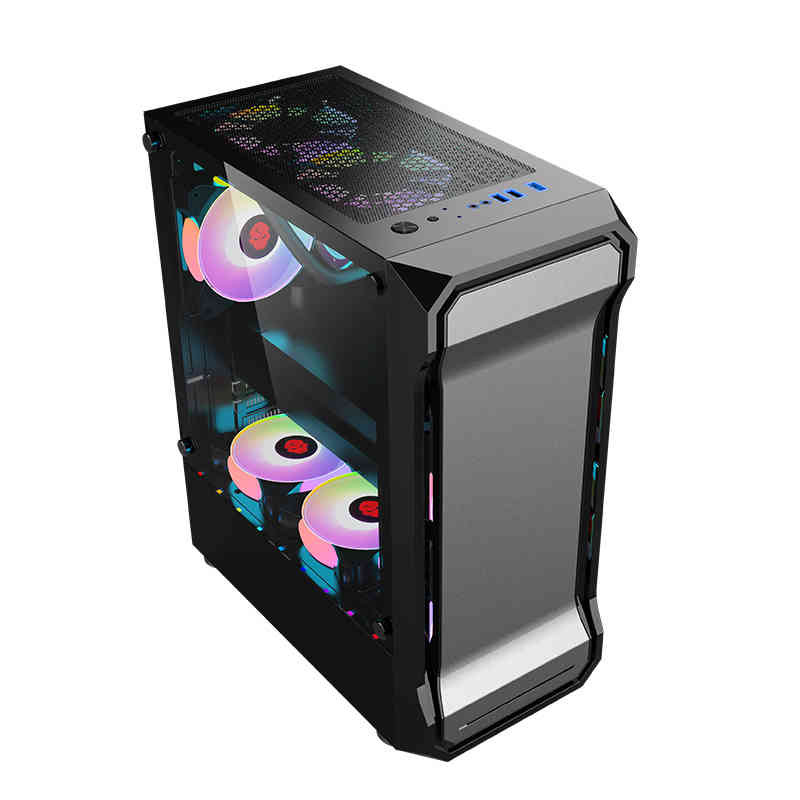

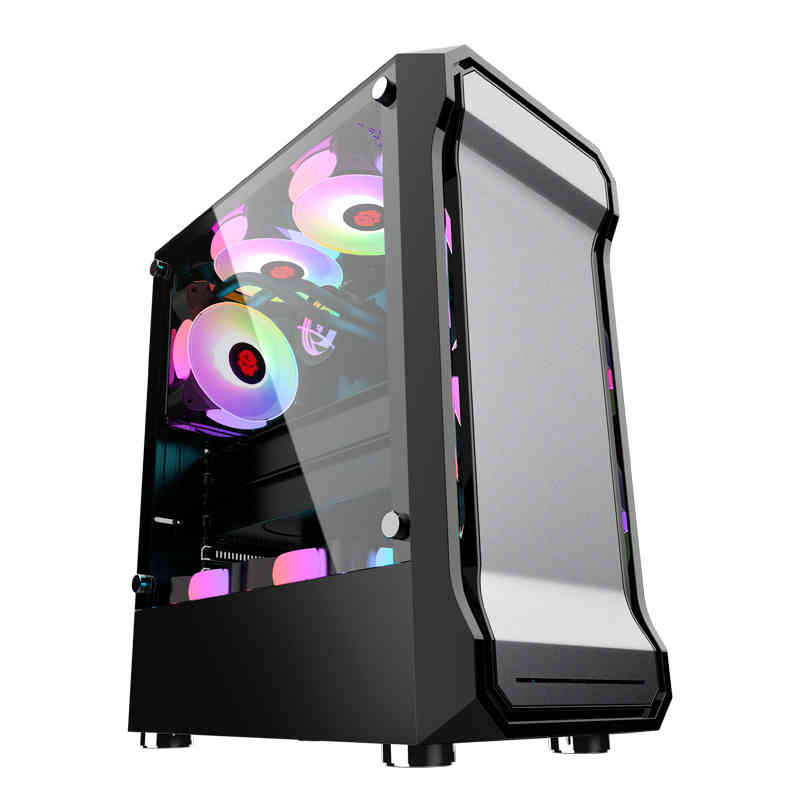

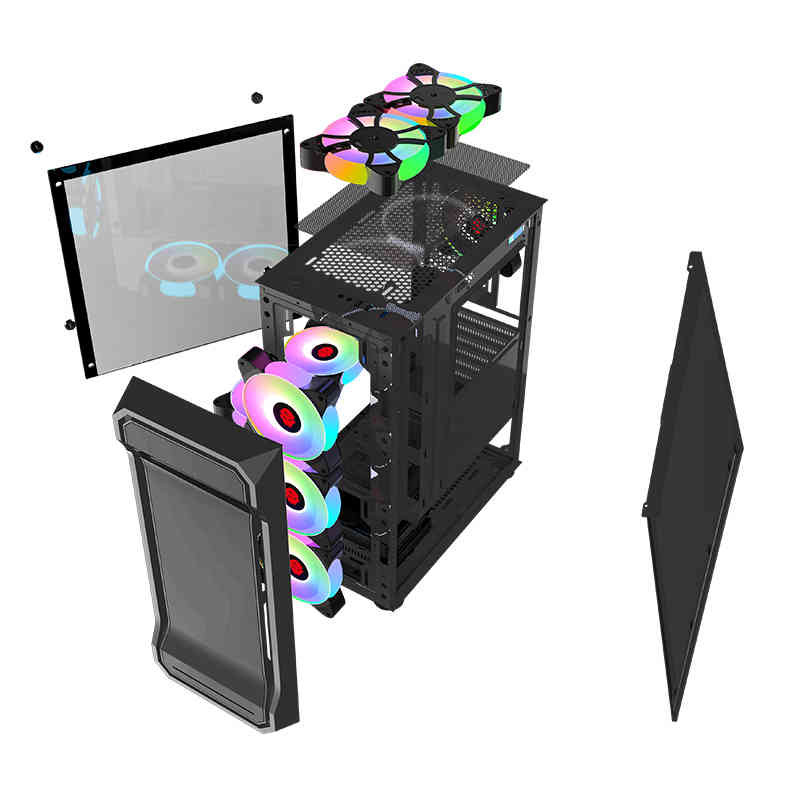

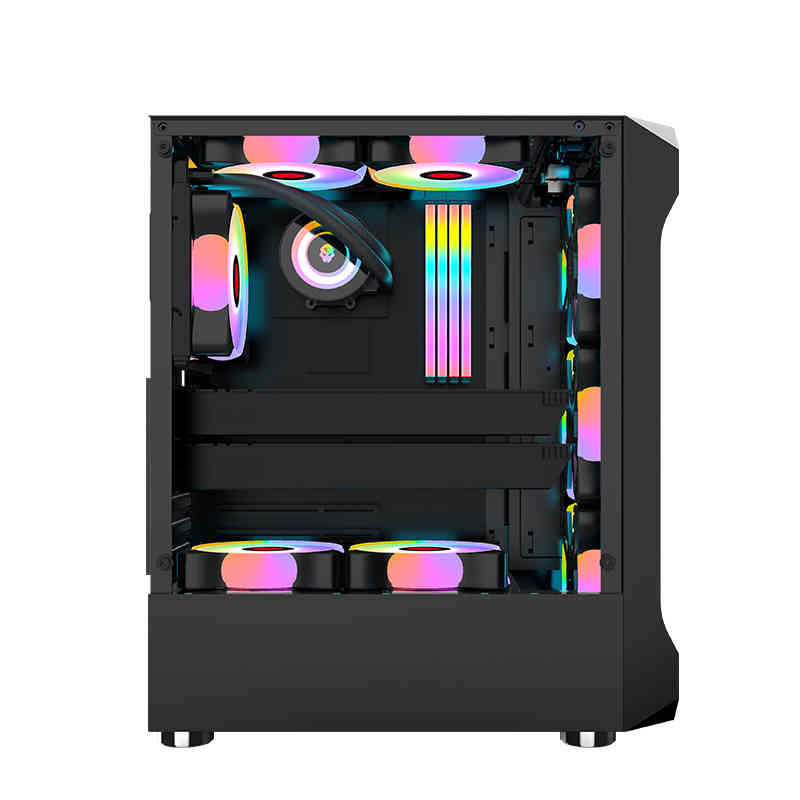

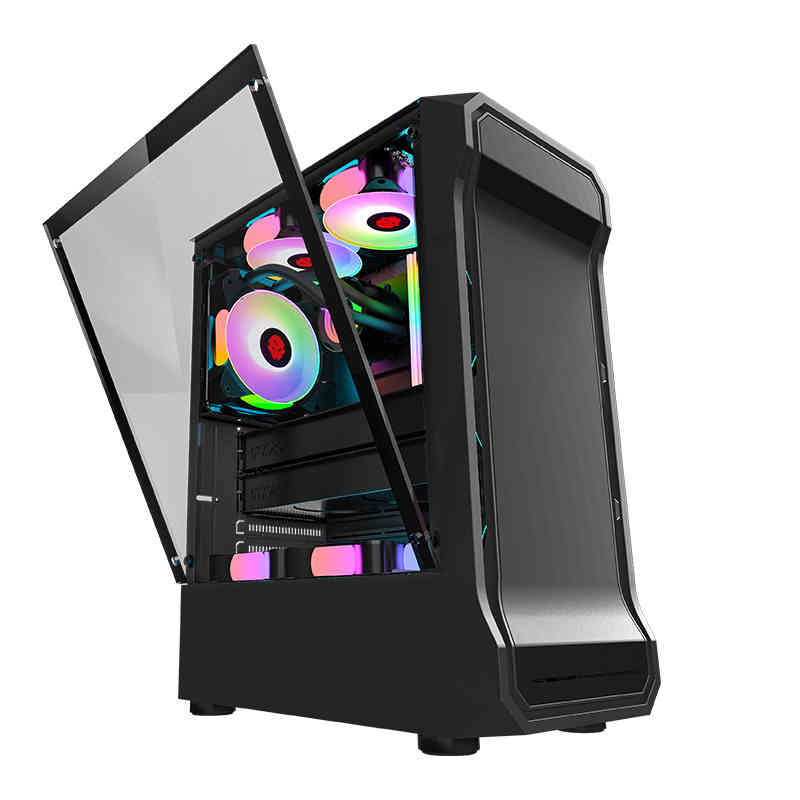

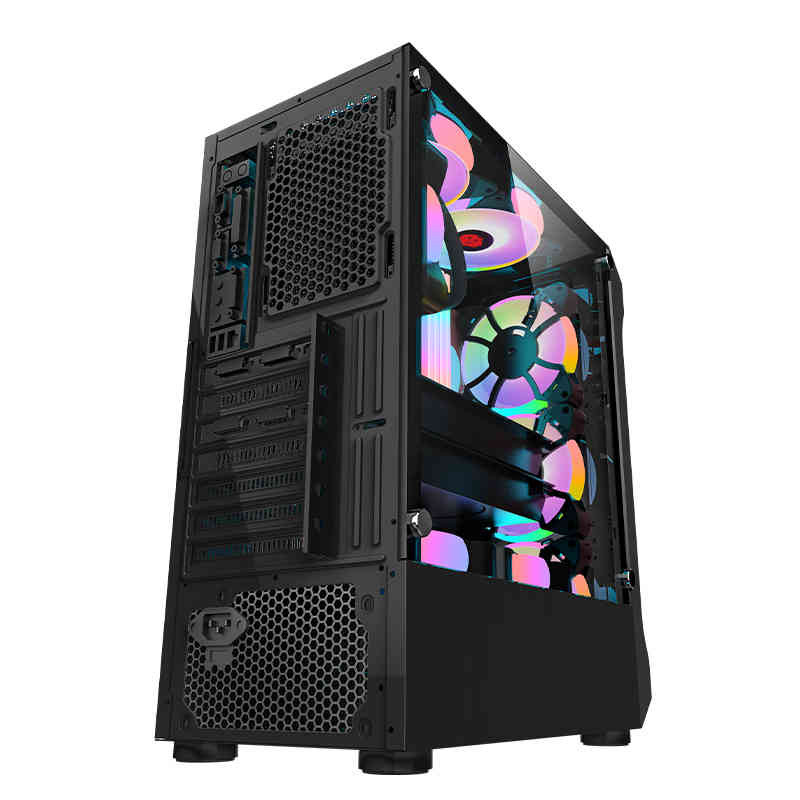

Model: ZJ1

Brand Name: OEM

Motherboard Compatibility: ATX/M-ATX

Expansion slots: 7

Panel interface: HD Audio;USB3.0*1;USB2.0*2

Hard disk position: HDD*1; SSD*1

Radiator height limit: 165MM

Graphics card length limit: 305MM

Fan position: front 12CM*3;

top 12CM*2;

          rear 12CM*1;

12CM*2 on the top of the power compartment

Product material: SPCC blackened steel plate + tempered glass

Plate thickness: 0.5mm

Power support: bottom ATX power supply

Chassis size: L378*W190*H447MM (including foot pads)

Hardware size: L335*W190*H435MM

Packing size: L500*W245*H445MM

Loading standard: 40HQ=1240pcs
