Gaming Case

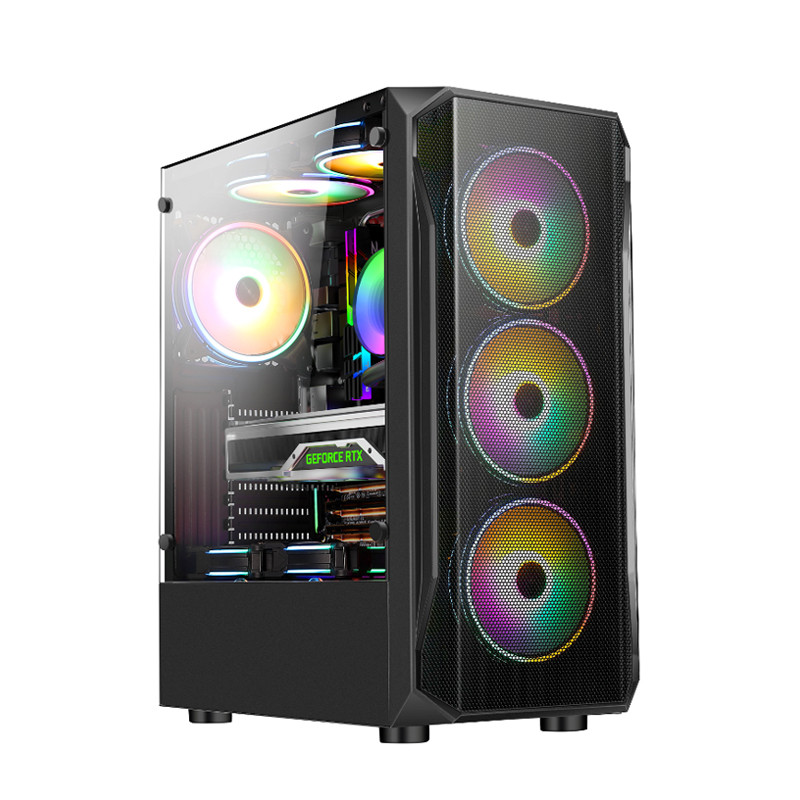

OEM ATX Gaming Computer Case Model 335-7

Hardware installation as below:

1. Standard ATX power supply/bottom power supply

2. One 12CM fan can be installed on the rear panel

3. Hard disk 3.5*1+2.5*1

4. Expansion PCI socket*7

5. MicroATX\MIniATX/ATX/EATX motherboard can be installed

6. The length of the graphics card is 325MM

7. CPU height 160MM

8. Front panel 360 water drain or three 12CM fans

9. Two 12CM fans at the top

10. USB1.0*2+3.0 imitation*1+HD


  • Product Detail

Hardware installation as below:

1. Standard ATX power supply/bottom power supply

2. One 12CM fan can be installed on the rear panel

3. Hard disk 3.5*1+2.5*1

4. Expansion PCI socket*7

5. MicroATX\MIniATX/ATX/EATX motherboard can be installed

6. The length of the graphics card is 325MM

7. CPU height 160MM

8. Front panel 360 water drain or three 12CM fans

9. Two 12CM fans at the top

10. USB1.0*2+3.0 imitation*1+HD


Product material specifications and loading standards

1. Hardware structure: 0.45SPCC full paint

2. Hardware specifications: 335*200*435MM

3. Product specifications: (including panel feet) 375*200*450MM

4. Packaging specification: 490*253*425mm

5. Weight: net weight: 4.3KG gross weight: 5KG

6. Loading standard: 40HQ=1250PCS
