Hardware installation and packaging specifications:

Model: LS1

Brand Name: OEM

Motherboard Compatibility: ATX/M-ATX

Expansion slots: 7

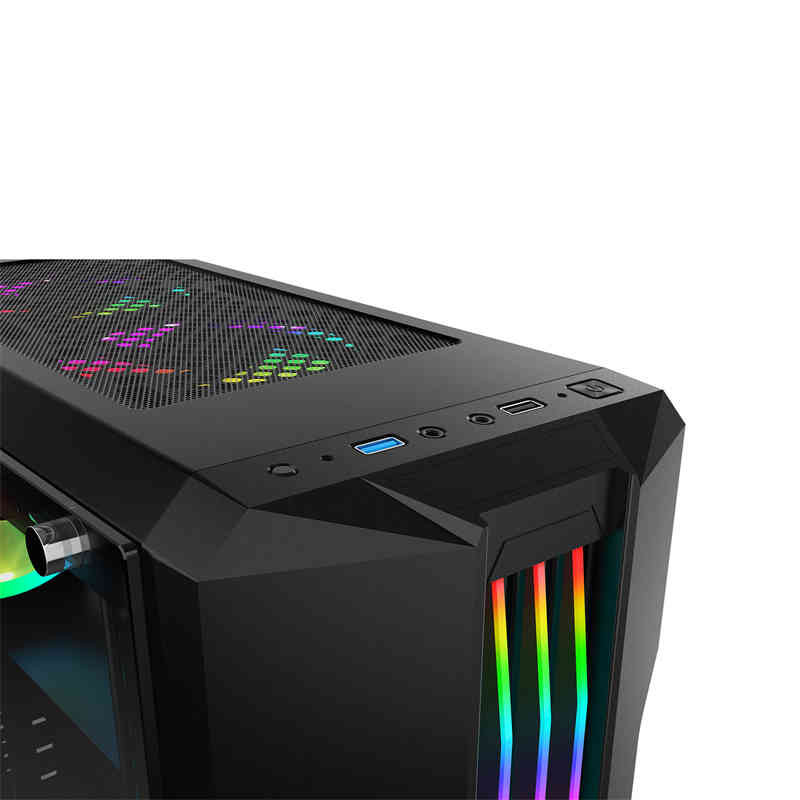

Panel interface: HD Audio;USB3.0*1;USB2.0*1

Hard disk position: HDD*2; SSD*2

Radiator height limit: 160MM

Graphics card length limit: 300MM

Fan position: front 12CM*3;

top 12CM*2;

rear 12CM*1

Product material: SPCC blackened steel plate + tempered glass

Plate thickness: 0.5mm

Power support: bottom ATX power supply

Chassis size: L390*W180*H435MM (including foot pads)

Hardware size: L340*W180*H425MM

Packing size: L480*W245*H460MM

Loading standard: 40HQ=1250pcs
